ARDUINO MEGA 2560
Mega2560
Product Name :- Arduino Mega2560
Cat No./ Model No :- MEGA2560
Arduino Mega2560
MEGA2560
MEGA2560
The Arduino Mega 2560 is a microcontroller board based on the ATmega2560.
It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega 2560 board is compatible with most shields designed for Arduino Uno and the former boards Duemilanove or Diecimila. We have Various sizes of Arduino Board. Check out our complete collection of Arduino Board at our Stores
Arduino Mega Specifications
The specifications of Arduino Mega include the following.
-
The ATmega2560 is a Microcontroller
-
The operating voltage of this microcontroller is 5volts
-
The recommended Input Voltage will range from 7volts to 12volts
-
The input voltage will range from 6volts to 20volts
-
The digital input/output pins are 54 where 15 of these pins will supply PWM o/p.
-
Analog Input Pins are 16
-
DC Current for each input/output pin is 40 mA
-
DC Current used for 3.3V Pin is 50 mA
-
Flash Memory like 256 KB where 8 KB of flash memory is used with the help of bootloader
-
The static random access memory (SRAM) is 8 KB
-
The electrically erasable programmable read-only memory (EEPROM) is 4 KB
-
The clock (CLK) speed is 16 MHz
-
The USB host chip used in this is MAX3421E
-
The length of this board is 101.52 mm
-
The width of this board is 53.3 mm
-
The weight of this board is 36 g

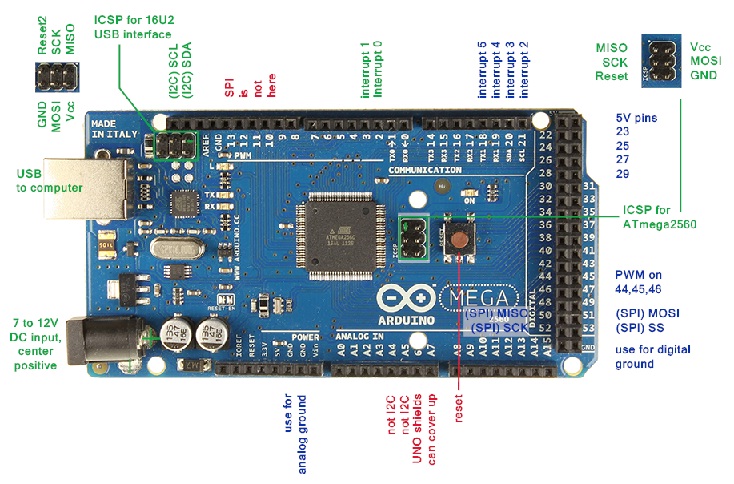

Arduino Mega Pin Configuration
The pin configuration of this Arduino mega 2560 board is shown below. Every pin of this board comes by a particular function which is allied with it. All analog pins of this board can be used as digital I/O pins. By using this board, the Arduino mega projected can be designed. These boards offer flexible work memory space is the more & processing power that permits to work with different types of sensors without delay. When we compare with other types of Arduino boards, these boards are physically superior.
ALSO AVAILABLE in ARDUINO UNO R3, NANO, PRO MINI
