MULTIMETER FLUKE 107

FLUKE 107 MULTIMETER

OTHER BRANDS of same product :- RISHABH, KYORITSU, MECO

Brand Name :- FLUKE

Product Name :- MULTIMETER

Cat No./ Model No :- 107

Type :- FLUKE 107 model DIGITAL MULTIMETER

FLUKE

MULTIMETER

107

MULTIMETER

107

FLUKE

107

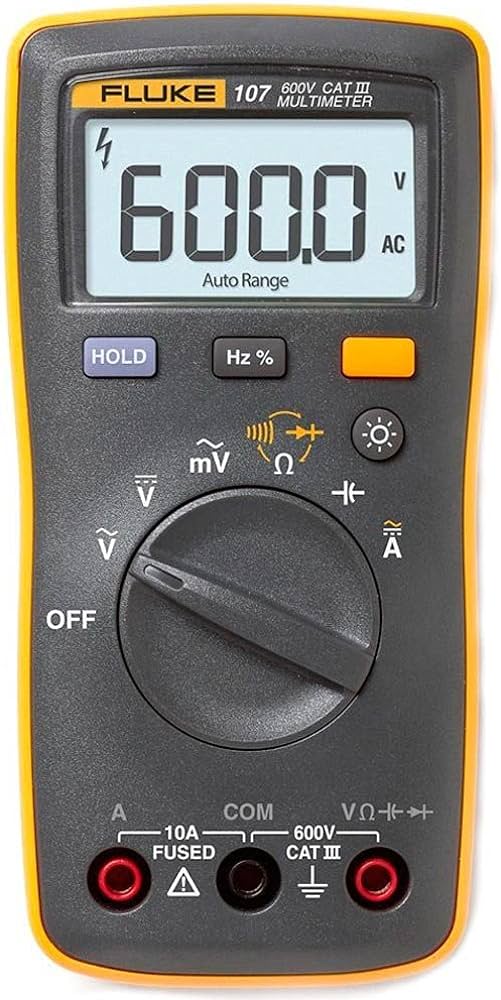

Fluke 107 Digital Multimeter

Fluke 107 Palm-sized Digital Multimeter

Voltage, resistance, continuity, capacitance
Input terminal for ac and dc current measurements to 10 A and current
Backlit display
Data hold
Diode test, plus frequency and duty cycle measurements
CAT III 600 V safety rating
Measures resistance and continuity to check for broken wires
Data hold and backlit display to keep you working safe and fast

Description

Accuracy Specifications
AC Volts (40 Hz to 500Hz)	Range	Resolution	Accuracy
AC Volts (40 Hz to 500Hz)	6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	1.0 % + 3
DC Volts	6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	0.5 % + 3
AC Millivolts	600.0 mV	0.1 mV	3.0 % + 3
Diode Test	2.000 V	0.001 V	10 %
Resistance (Ohms)	400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ	0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5% + 3
Capacitance	50.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000 μF	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF	2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5
Frequency Hz (10 Hz – 100 kHz)	50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz	0.1 % + 3
Duty Cycle	1 % to 99 %	0.1 %	1 % typical
AC Current (40 Hz to 200 Hz)	4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
DC Current	4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
